Aseptic Diaphragm Pump

SEND ENQUIRY

TECHNICAL INFORMATION

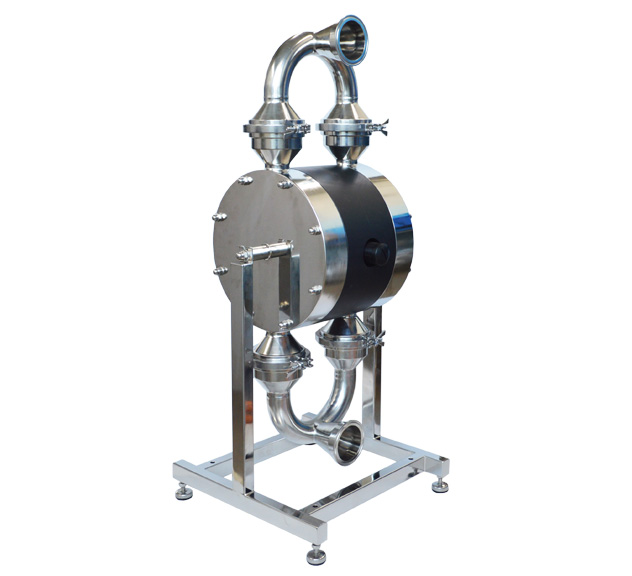

Our Aseptic Air Operated Diaphragm Pump has been built to meet the cleaning and sterilisation requirements for the Pharmaceutical, Biotech and Food & Beverage industries. Designed to be easily rotated in its stand for drainage during CIP & SIP processes, this EHEDG-certified pump is perfect for applications requiring the highest hygienic standards.

Our Aseptic Diaphragm Pump is cleanability tested, meaning bacteria does not grow in the pump after cleaning and draining and there are no hidden areas where bacteria can grow. Units can also be delivered with backup diaphragm systems. The manifold clamps and the housing screws are simply removed for complete disassembly and cleaning. Models are designed with an extra-fine surface finish to Ra 0.8 as standard and Ra 0.5 upon request.

The pumps are supplied as standard with ISO Tri-Clamp connections; however, they may also be equipped with almost any type of connection used in the hygienic field – DIN clamps, SMS milk, RJT, and DIN aseptic to mention a few. Available ATEX Rated.

Typical applications for our Aseptic Diaphragm Pump:

Food & Dairy
Grocery
Beverages
Bakery
Hygiene
Cosmetics
Pharmaceuticals & Cosmetics

Features & Benefits

No bacteria growth: no horizontal areas inside the pump
Easy cleaning and draining: designed for CIP and SIP processes
Gentle pumping: no damage to sensitive products
Wide range of connection types: Tri-clamp, sanitary threads (DIN, SMS etc.)
Hygienic surfaces: housings made from electro-polished stainless steel AISI 316L, Ra<0.8 (standard) or Ra<0.5 (on request)
No leakage: no rotating shaft seals
Flexible installation: self-priming
Reliable in service: can run dry and against closed valve without damage
Environmentally friendly: lube-free air valve
Hygienic diaphragms: designed without any nuts or plates on the pumped side
Can be fitted with a heating jacket for applications requiring certain temperatures
Flap valves available for large solids
Magnetic Ball Lifters can be fitted
Counter Connections available

Specifications

Materials	Stainless Steel AISI 316L
Max Capacity	330 l/min
Max Pressure	160m
Self Priming	Yes
Max Solids Size	10mm
Max Temperature	110ºC
Viscosity	0-200+ cSt
