Aluminium Diaphragm Pump
Max. Flow:
49m³/hr
Max. Head:
80m
Max. Temp:
110°C
Material:
Metal

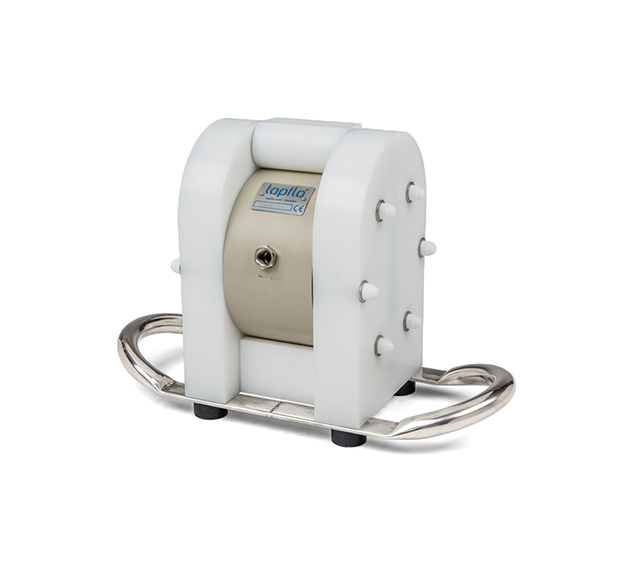

Drum/IBC Diaphragm Pump
Our Diaphragm Drum Pump, also known as an IBC Diaphragm Pump, is a lightweight and mobile solution for emptying drums and containers. Designed to dispense liquids and facilitate changeovers from drums, IBCs and containers, this pump handles a wide range of liquids with ease. This Diaphragm Pump is equipped with a carrying handle and immersion tube which allows for direct insertion into drums and IBCs. The handle ensures portability and ease of insertion/removal of the pump during usage. Available in a variety of materials including Cast Iron, PE, PTFE and Stainless Steel 316L.
Typical applications for our Diaphragm Drum Pump:
- Hygienic
- Chemical
- Surface Treatment
- Water Treatment
- Pulp & Paper
- Paint & Print
Features & Benefits
- 70% fewer parts than regular AODDs on the market
- Variable suction tube lengths up to 2m
- Stainless Steel AISI 316L, PP or PTFE material options to suit almost any fluid
- No rotating parts means gentle fluid handling – ideal for shear-sensitive fluids or abrasive products
- High Pressures up to 80m on standard units
- Easy to adjust flow rate via blocking needle valve
- Driven by compressed air for safe fluid handling
Turn your existing Tapflo Diaphragm Pump into a Drum Pump with the following additional parts:
- 1 x Drum Inlet
- 1 x Pump Tube
- 1 x Handle
- 4 x Domed Nut for Pump Feet
- 4 x Washers for Pump Feet
- 4 x Rubber Feet for Pump
Specifications
| Materials | Cast Iron, PE, PTFE, Stainless Steel 316L |
| Max Capacity | 125 l/min |
| Max Pressure | 160m |
| Self Priming | Yes |
| Max Solids Size | 6mm |
| Max Temperature | 110ºC |
| Viscosity | 0-200+ cSt |
