TECHNICAL INFORMATION

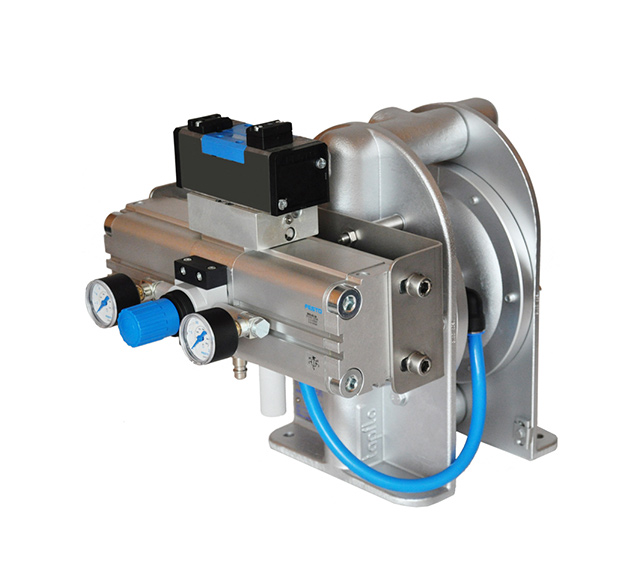

Our Filter Press Diaphragm Pump is specifically designed for hassle-free Filter Press feeding. This compact unit can be directly mounted onto the Filter Press, simplifying slurry pressing with ease. When purchased as a complete unit, our Filter Press Pump or Pressure Regulator & Booster come pre-installed onto the pump via an external mounting bracket. The booster, boasting a 2:1 pressure ratio, enhances the pump’s pressure capabilities. This self-regulating Filter Press Pump station is a plug-and-play solution, eliminating the need for additional capacity-regulating devices. To enhance this pump’s performance, a range of accessories are available including Stroke Sensors, Stroke Counters and Flow Meters.

Turn your existing Air Operated Double Diaphragm Pump into a Filter Press Pump by purchasing the following parts:

1 x Long Reinforcement Plate
1 x Short Reinforcement Plate
1 x Booster Mounting Plate
2 x Pin Screws
1 x Booster Complete Set

Features & Benefits

Regulated output pressure up to 2:1 of the input pressure
Pressure Booster mounted directly on the pump
Balanced diaphragms and high-pressure capabilities for enhanced durability
Reinforcement plates, pinscrews and a hybrid air valve ensure maintenance-free operation
All Tapflo pumps can be supplied with a booster, making the range suitable for a variety of applications

Specifications

Materials	Aluminium, Cast Iron, PE, PTFE, Stainless Steel AISI 316L
Max Capacity	570 l/min
Max Pressure	160m
Self Priming	Yes
Max Solids Size	15mm
Max Temperature	110ºC
Viscosity	0-200+ cSt
