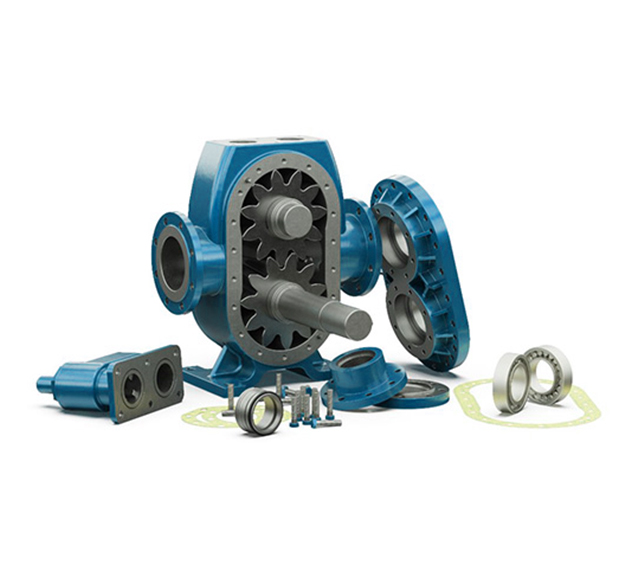

Helical External Gear Pump
Our Helical External Gear Pump is designed specifically for medium and high-pressure transfer applications and excels in precise transfer and metering applications involving polymers, fuels and chemical additives. Often used as lubrication pumps in machine tools, in fluid power transfer units, and as oil pumps in engines, this pump stands out for its compact and sturdy build. Featuring shaft support on both sides of the gears, this Gear Pump can handle pressures up to 15 Bar and operates within a wide speed range of 50 – 1,500 rpm.
Typical applications for our Helical External Gear Pump:
- Petroleum
- Fuel
- High volume transfer
- Also suitable for pumping molasses
Features & Benefits
- ATEX available
- Shaft support on both sides of the gears
- Pressures up to 15 Bar
- Wide speed range, between 50-1500 rpm
- Precise transfer and metering applications involving polymers, fuels and chemical additives.
- Can be fitted with Heating Jackets to maintain fluid temperature
- By Pass/Pressure Relief Valve can be installed to protect the pump from over-pressurisation
Specifications
| Materials | Cast Iron, Ductile Cast Iron, Stainless Steel AISI 316L, Cast Steel |
| Max Capacity | 320m³/hr |
| Max Pressure | 150m |
| Self Priming | No |
| Max Temperature | 350ºC |
| Viscosity | 55,000 cPs |
