Industrial Centrifugal Pump
Max. Flow:
74m³/hr
Max. Head:
100m
Max. Temp:
180°C
Material:
Metal
High Performance Centrifugal Pump
Our High Performance Centrifugal Pump seamlessly adapts to diverse application and installation conditions. Designed for maximum efficiency, this pump minimises downtime, ensuring continuous operation for various Industrial, Hygienic and Self-Priming applications. The Industrial and Hygienic variants of this pump are available in larger sizes and standout for their ability to reach higher pressures. The Self-Priming variant is self-priming up to 5m. This pumps modular design allows for impressive flow rates up to 132m³/hr and maximum discharge pressures to to 100m.
Typical applications for our High Performance Centrifugal Pump:
- Tank-to-tank transfer
- Pressure boosting
- Dispensing
- Loading and offloading
- Tank cleaning
- Batching and metering
Features & Benefits
- Electropolished to Ra > 0.8 as standard or sandblasted to Ra > 3.2 as standard for Hygienic applications
- Capable of handling fluids with solids in suspension, with viscosity up to 150 cPs
- ATEX available
- Robust construction and low noise/vibration levels
- Low NPSHr (net Positive Suction Head required)
- Modular construction
- Adjustable impeller allows customisation for specific duty points for diverse operating conditions
- Capable of handling temperatures up to 120°C
- Motor with integrated inverter
- Option for double mechanical seal
- Adjustable feet and brackets
Specifications
| Materials | Stainless Steel AISI 316L |
| Max Capacity | 132m³/hr |
| Max Pressure | 80m |
| Self Priming | Yes (variant dependent) |
| Max Temperature | 120ºC |
| Viscosity | 150 cPs |
Options & Variations
-
- Industrial High Performance Centrifugal Pump
-
- Sanitary High Performance Centrifugal Pump
CTX I: Industrial High Performance Centrifugal Pump:
- Casing:Â Stainless steel AISI 316L glass blasted Ra<3.2
- Impeller:Â Stainless steel AISI 316L electropolished Ra<3.2
- Mechanical seal:Â Single, SiC/carbon (std) or SiC/SiC, FDA approved
- O-rings:Â EPDM, FKM, NBR (all FDA approved)
- Motor:Â P55; IEC frame B35; PTC thermistor; IE3; 3-phase
- Pressure rating @ 20°C: PN10 – CTX 40-165, CTX 50-145, CTX 50-200, CTX 65-175
PN16 – CTX 65-230, CTX 65-240, CTX 80-205, CTX 80-212 - Liquid temp: -10°C to 120°C (140°C for short periods during SIP)
- Ambient temp: -20°C to 40°C
- Viscosity:Â Max 150 cSt

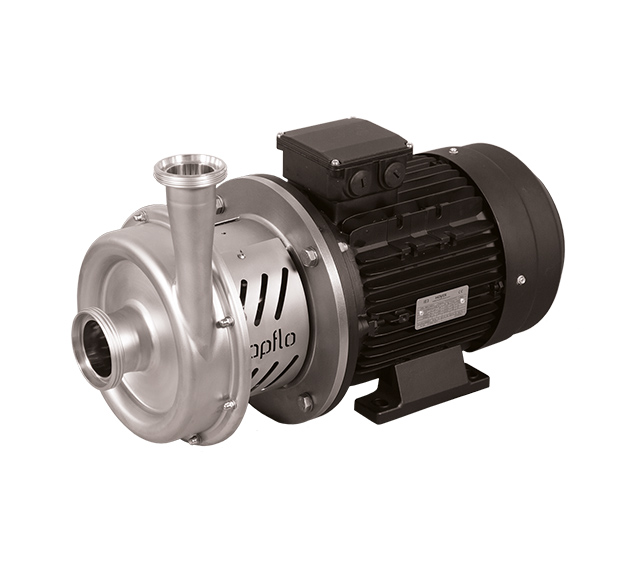

CTX H: Hygienic High Performance Centrifugal Pump:
- Casing:Â Stainless Steel AISI 316L electropolished Ra<0.8
- Impeller:Â Stainless steel AISI 316L electropolished Ra<0.8
- Mechanical seal:Â Single, SiC/carbon (std) or SiC/SiC, FDA approved
- O-rings:Â EPDM, FKM, NBR (all FDA approved)
- Motor:Â P55; IEC frame B35; PTC thermistor; IE3; 3-phase
- Pressure rating at 20°C: PN10 – CTX 40-165, CTX 50-145, CTX 50-200, CTX 65-175
PN16 – CTX 65-230, CTX 65-240, CTX 80-205, CTX 80-212 - Liquid temp: -10°C to 120°C (140° for short periods during SIP)
- Ambient temp: -20°C to 40°C
- Viscosity: Max 150 cSt

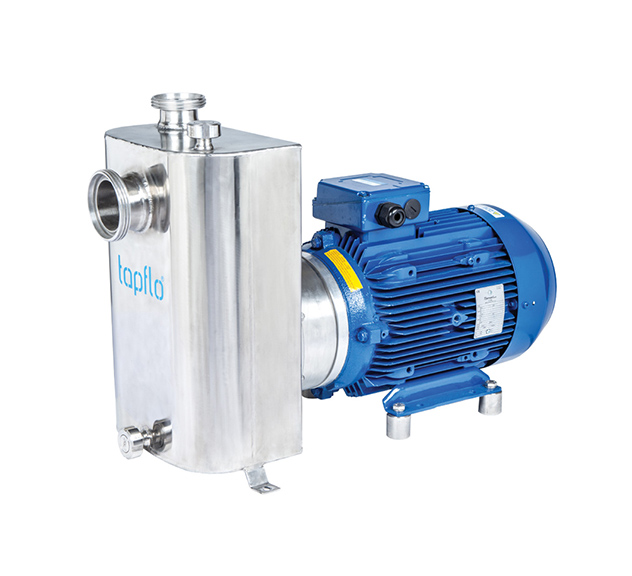

CTX S: Self-Priming High Performance Centrifugal Pump:Â
- Self-priming up to 5m
- Easy maintenance and cleaning
- Hygienic and Industrial use
- Simple and compact design
Interchangeable parts available:
- 13 motor sizes
- 9 lantern sizes
- 8 shaft sizes
- 2 seal sizes
- 3 back cover sizes
- 10 impeller sizes
- 10 casing sizes
Impeller:
The CTX is designed with a multi-facet open impeller which benefits the pump by stabilising operation and reducing noise and vibrations emitted by the pump.
Open impellers are also ideal for handling applications that are highly viscous and/or have suspended solids.
Tapflo can trim and adapt the impeller to meet the needs of the process media.
