Inverter Motor
Tapflo Gulf is proud to be the exclusive UAE Partner of Doseuro, a leading Italian manufacturer of the highest-quality Metering Pump Solutions.
Our Inverter Motor, the Rapida 2.0 from Italian partner, Doseuro, is a state-of-the-art motor designed for precision and versatility in various dosing applications. It combines a three-phase asynchronous electric motor with an advanced inverter board, allowing for variable motor speed to meet specific installation conditions. Equipped with a user-friendly display and control board, this motor is easy to install and configure, making it an excellent choice for both new installations and upgrades to existing pumps.
Typical applications for our Inverter Motor:
- Water & Wastewater Treatment
- Food Industry
- Textiles
- Power Stations
- Pulp & Paper
Overview
The RAPIDA 2.0 Inverter Motor is designed to ensure accurate dosing and flexible pump performance. With the ability to modify pump curves according to real installation conditions, this motor optimises your operation for any setup. It features a graphic display for monitoring flow rate, speed, and frequency, and offers various control modes including manual, analogic, and digital via RS485 with Modbus/RTU protocol. The compact design and straightforward installation process make it an ideal solution for enhancing the functionality of our Doseuro Dosing & Metering Pump range.
Features & Benefits
- Accurate Dosing: Modify pump curves for precise control
- User-Friendly Interface: Graphic display shows flow rate, speed percentage, and frequency
- Flexible Control Modes: Manual, analogic, and RS485 serial port control
- Easy Installation: Can be quickly installed on existing pumps
- Compact Design: Reduced overall dimensions for space-saving installations
- Robust Build: Designed for continuous operation with high overload capacity
- Password Protection: Secure access to motor settings
- Remote Control Capability: Optional wired remote control kit available
Specifications
| Motor Power Range | 0.25 kW to 0.75 kW |
| Power Supply | Standard: 1Ph 230V (±10%) 50/60Hz, Optional: 1Ph 110V (±10%) 50/60Hz |
| Protection | IP55 |
| Ambient Temperature Range | 0 – 45°C |
| Ambient Altitude | Up to 1000m above sea level |
| Rated Motor Current at 230V | Up to 3.5 A |
| Overload Capacity | 150% continuous service |
Control Functions:
| Manual Mode | Flow rate adjustment with digital display |
| Analogic Mode | Flow rate adjustment via 4-20mA, 0-20mA, 0-10V, or 2-10V input |
| Digital Mode | RS485 serial port for flow rate adjustment with Modbus/RTU protocol |
| Level Control Setting | Connectable to level sensors for automated control |
| Batch Mode | Programmable operation for specific quantities |
| Timing Mode | Delayed start or operation for set time periods |
| Remote Alarm | Relay output for alerting any alarms |
| Priming Mode | Facilitates pump start-up |
Variations
- Motor Rotation: +/- 90° rotation capability for flexible installation

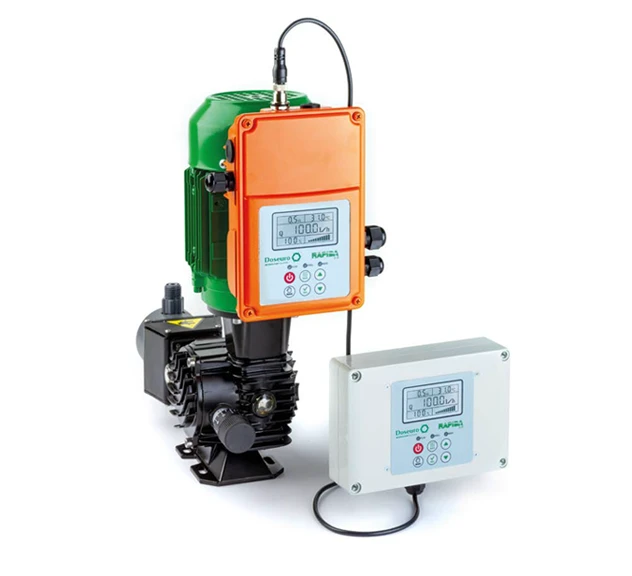

- Remote Control Kit: Optional wired remote control for ease of use
- Customisation: Configurable settings for specific application requirements
