High Pressure Peristaltic Pump
Max. Flow:
100m³/hr
Max. Head:
150m
Max. Temp:
80°C
Material:
Nodular Cast Iron

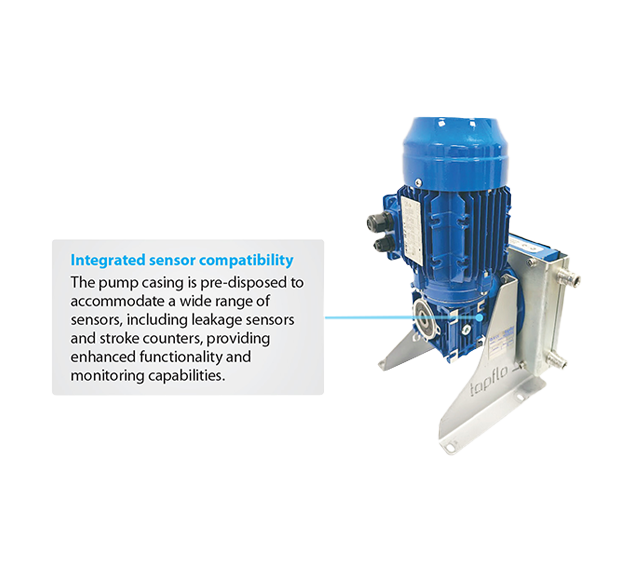

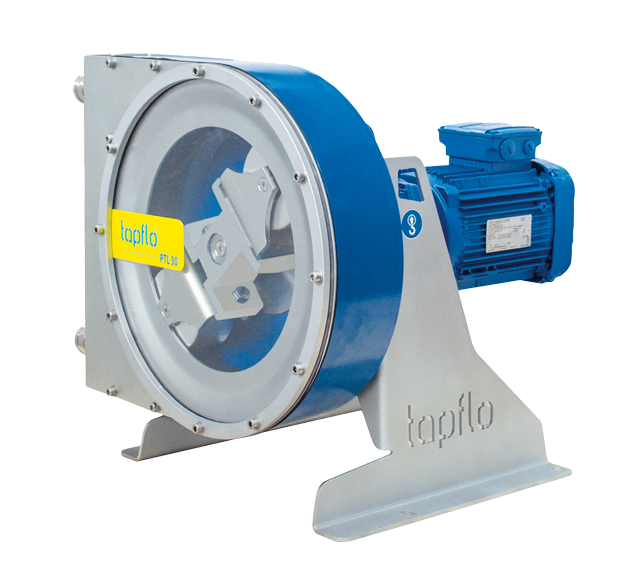

Low Pressure Peristaltic Pump

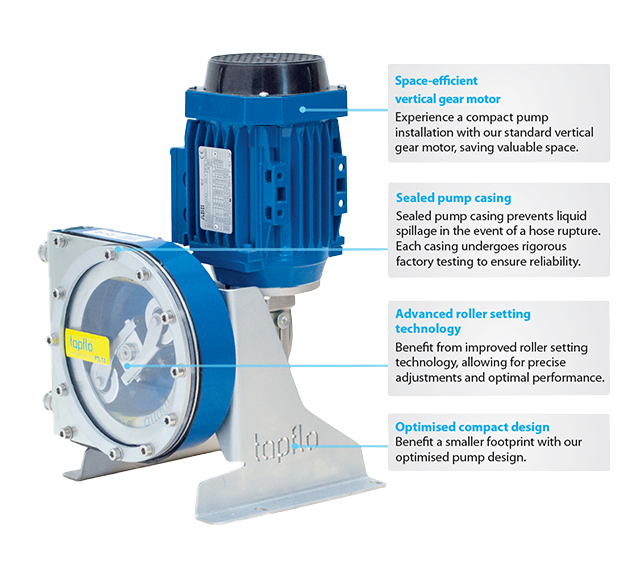

Our Low Pressure Peristaltic Pump was designed with versatility in mid, featuring adaptable motor positions, a carefully engineered roller design, food-approved silicone grease lubricant and aluminium housing, ensuring flexibility and efficient, hygienic operation. Our Low Pressure Peristaltic Pump, similar to our High Pressure model, excels at handling challenging liquids, including corrosive, abrasive and viscous substances with solids. For increased versatility, an ATEX-rated variant of this low-pressure pump is available for use in hazardous environments.
Typical industries for our Low Pressure Peristaltic Pump:
- Pharmaceutical
- Water Treatment
- Food & Beverage
- Cosmetics
- Chemical
Low Pressure Peristaltic Pump Video
Overview of our upgraded Peristaltic Pump range:
Features & Benefits
- The PXTL model of this pump is the ATEX-rated variant
- Peristaltic Pumps are ideally suited to pumping challenging liquids including corrosive, abrasive and viscous liquids containing particles
- Minimal downtime and simple maintenance requirements as there are few components with no seals required
- User-friendly operation
- Cost effective solution
- Minimal wear thanks to its turbulence-free performance
- Customisable pump connections with multiple types and orientations available
- Self-priming up to -0.9 Bar
- Capable of handling high viscosity liquids up to 100,000 cPs
- Reversible operation
- Precise dosing and adjustable flow
- Safe to run dry
Specifications
| Materials | Aluminium |
| Max Capacity | 10m³/hr |
| Max Pressure | 40m |
| Self Priming | Yes |
| Max Temperature | 80ºC |
| Viscosity | 100,000 cPs |
Options & Variations
-
- Peristaltic Pump Pulsation Dampener
-
- Hose Leak Detector
-
- Built-In Frequency Inverter
-
- Revolution Counter
-
- Vacuum System
-
- Trolleys
Available Gear Motors:
| Pump Size | Motor Power (kW) | Pump Speed (rpm)Â |
| PTL 9, PTL 13 | 0.18 | 18, 24, 28, 35, 47, 56, 69, 93, 139, 187 |
| PTL 17 | 0.18
0.25 |
14, 18, 24, 28, 35, 47, 56, 69, 93, 139
187 |
| PTL 25 | 0.55 | 37, 62, 86, 138 |
| PTL 30 | 1.1
1.5 |
40
49, 58, 86, 104 |
| PTL 45 | 1.5
2.2 |
40, 58
72, 93 |
