Diaphragm Pump Pulsation Dampener
Max. Flow:
N/A
Max. Head:
N/A
Max. Temp:
N/A
Material:
Plastic/Metal
Plastic Diaphragm Pump

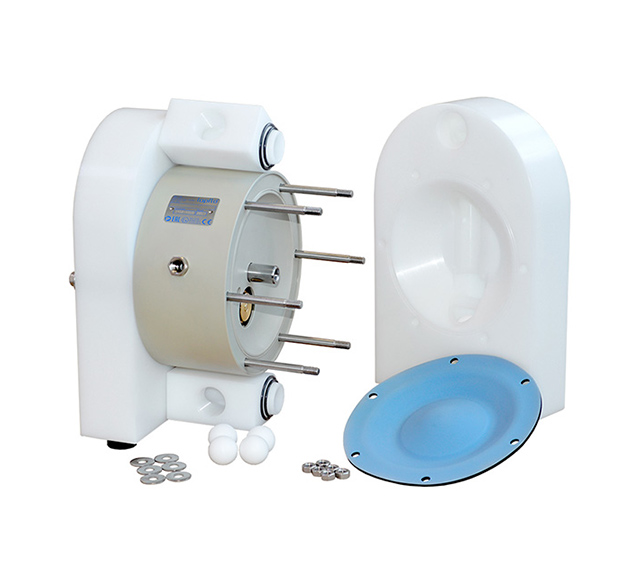

Our Plastic Diaphragm Pump made from HDPE and PTFE is made by carving out a solid block of these materials. This unique construction makes it ideal for managing a variety of viscous, chemically reactive fluids and those containing abrasive solids.
Our Diaphragm Pumps are designed to withstand mechanical force and handle aggressive chemicals. The pumps are machined from solid block HDPE or PTFE, which offer superior wear resistance and chemical resistance compared to standard Polypropylene. For parts that are more vulnerable to wear, a different grade of HDPE can be used with even greater resistance to abrasion and mechanical stress. Our Diaphragm Pump ranges are compact, robust, reliable, and easy to maintain, keeping service costs and process downtime to a minimum. We also offer a range of executions and fittings to alter your pump based on your requirements.
Applications & Industries for our plastic Diaphragm Pump:
- Chemical
- Industrial
- Oil & Gas
- Pulp & Paper
- Surface Treatment
Features & Benefits
- Self-priming up to 5m dry or 9m wet
- No-nut, clean-face diaphragms which means no holes or leakage
- Pneumatic accessories for easy control and maintenance
- Discharge pressure up to 8 Bar standard or 16 Bar with a booster
- Run dry without damage
- ATEX available
- Various installation options including flooded, self-priming and submerged
- Various configuration options including pumps with twin inlet and outlet ports, Diaphragm Pumps with Rupture Protection and Filter Press options
Specifications
| Pump Housing | PE or PTFE |
| Diaphragms | PTFE, FKM, EPDM or NBR |
| Max Capacity | 820 l/min |
| Max Air & Discharge Pressure | 80m |
| Max Solids Size | 15mm |
| Max Temperature | 100ºC |
| Viscosity | 0-200+ cSt |
Pump Options
-
- Rupture Protection
-
- Twin Inlet/Outlet
-
- Built on Dampener
-
- Integrated Flanges
Rupture Protection
Built with an extra set of Diaphragms which prevents the leaking of products into the environment and air distribution system should there be a rupture.
Twin Inlet & Outlet
• Transfer of 2 different liquids (2 inlets and outlets) – two pumps in one.
• Mixing of 2 liquids with one pump, 50 / 50 ratio
• Transfer and return of printing ink from storage to ink tray
• Transfer and agitation of liquids within one pump
Built on Dampener
• Minimise vibrations in the output of the Diaphragm Pump
• Protection for instruments in your pipework
• Reduce wear on pump and maintenance costs
Integrated Flanges
An ideal solution when there is a risk of vibrations from the installation of the pump, providing better stability and sealing.
