Aluminium Diaphragm Pump
Max. Flow:
49m³/hr
Max. Head:
80m
Max. Temp:
110°C
Material:
Metal

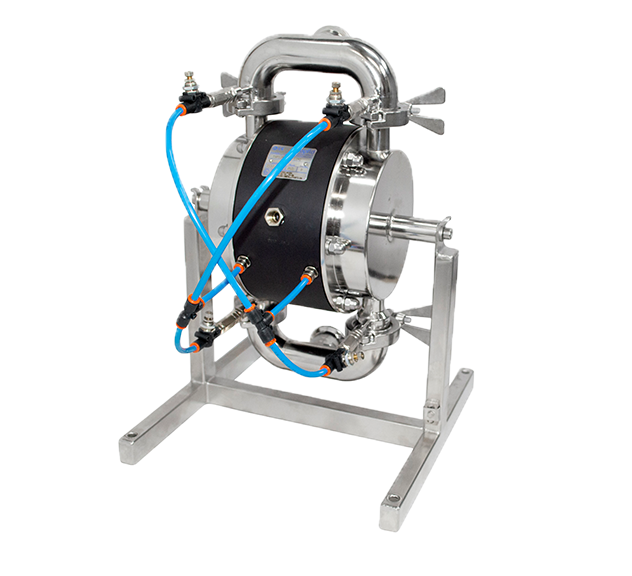

Powder Diaphragm Pump
Our Powder Diaphragm Pump is a cost-effective and space-saving solution designed for efficient handling of various powders. Built on the foundation of the Tapflo Air Operated Diaphragm Pump, this pump is suitable for both Industrial and Sanitary powders that don’t clump together when squeezed. Its non-stick PTFE coating ensures efficient transfer with minimal resistance, making it a practical choice for different process powders with specific weights ranging from 80 to 720 kg/m³ dry weight. The hermetic transfer system, driven by 2 diaphragms, primes and discharges powder, making it an efficient unit for industries such as Pharmaceutical, Cosmetics and Food & Beverage.
Standard powders handled by our Powder Pump:
- Sintering Powder
- Carbon Black
- Resins
- Silicones
Features & Benefits
- Capable of handling various process powders with specific weights from 80 – 720 kg/m³
- Varied capacity for different powders depending on consistency, weight etc.
- ATEX-rating for use in hazardous environments
- Hermetic system ensures contamination-free powder transfer, maintaining product integrity and quality
- Performs in the same way as complex, large powder systems with a cost-effective and portable design, saving on installation and maintenance
Specifications
| Materials | Aluminium, PTFE |
| Max Capacity | Varies based on powder consistency & weight |
| Max Pressure | 160m |
| Self Priming | Yes |
| Max Solids Size | 15mm |
