Industrial Centrifugal Pump
Max. Flow:
74m³/hr
Max. Head:
100m
Max. Temp:
180°C
Material:
Metal
Self Priming Centrifugal Pump

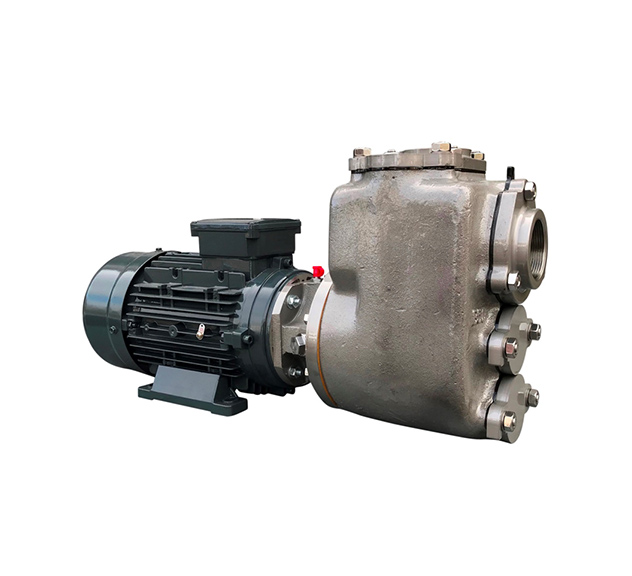

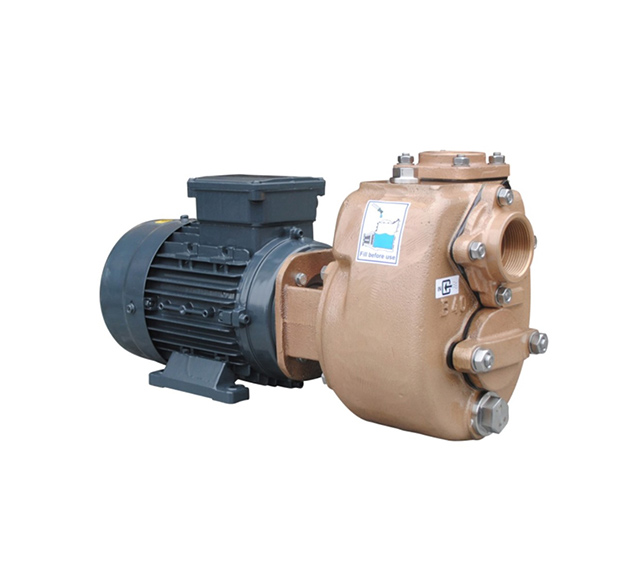

Our Self Priming Centrifugal Pump is a versatile solution manufactured from Cast Iron or Stainless Steel. This pump is available in 3 models including Electrically Driven Self Priming Pump (2-pole), Electrically Driven Self Priming High Head Pump (2-pole) and Electrically Driven Solids Handling Pump (4-pole). This Self Priming Centrifugal Pump is characterised by its open impeller, changeable wear plate and non-return valve in the suction port, and is available in sizes ranging from 1 1/2″ to 12″ with a free-passage clearance up to 18mm for flexibility in your operations.
Typical industries for our Self Priming Centrifugal Pump:
- Construction
- Irrigation
- Horticulture
- Wastewater Management
- Shipping
- Agriculture
- Emergency Pump Units
Features & Benefits
- Sizes ranging from 1 1/5″ to 12″ to accommodate various applications
- Open impeller configuration for easy servicing
- Non-return valve on suction port, eliminating the need for a foot valve, enabling quick priming
- Large solids-handling capacity up to 18mm
- Suitable for use with hot fluids
- Cooled shaft seal
- Extended life due to pump design
- ATEX available
Specifications
| Materials | Cast Iron, Stainless Steel AISI 316L |
| Max Capacity | 1,250m³/hr |
| Max Pressure | 56m |
| Self Priming | Yes |
| Max Solids Size | 18mm |
| Max Temperature | 70ºC |
Options & Variations
- Electrically Driven Self Priming Pumps, 2-Pole
- Electrically Driven Self Priming High Head Pumps, 2-Pole
- Electrically Driven Solids Handling Pumps, 4-Pole
