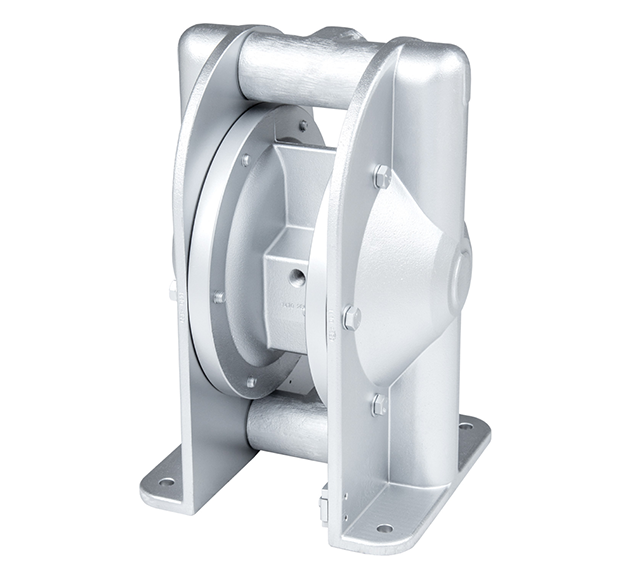

Stainless Steel Diaphragm Pump

SEND ENQUIRY

TECHNICAL INFORMATION

Our ATEX-rated Stainless Steel Diaphragm Pump, constructed from materials including Aluminium, Cast Iron and Stainless Steel AISI 316L, boasts 70% fewer parts than standard AODDs on the market today, ensuring simple maintenance and reduced downtimes. This pumps ATEX compliance and suitability for hazardous areas (Categories 1 & 2 and Zones 0 & 1) makes it ideal for the Oil & Gas and Chemical industries. This Diaphragm Pump offers capacities up to 820 l/min and can handle pressures up to 160m. It also easily manages solids up to 100mm, is self-priming and is suitable for a range of viscosities up to 200+ cSt.

Liquid compatibility for our Stainless Steel Diaphragm Pump:

Flammable
Corrosive and chemically aggressive
High and low-viscosities
Abrasive and solids-laden fluids
Shear-sensitive

Features & Benefits

ATEX-compliant, specifically designed for Equipment Group IIG (Gas), Cat 2 (Zone 1)
Crafted from conductive (carbon filled) plastics HDPE/PTFE to prevent electrostatic loads accumulating in the pump
Reduced surface resistance to less than 105 W
Black colour from conductive pigments doesn’t compromise chemical resistance of thermoplastics used
Earth connection on the pump for grounding electrostatic loads

Specifications

Materials	Aluminium, Cast Iron, Stainless Steel AISI 316L, PE & PTFE
Max Capacity	820 l/min
Max Pressure	160m
Self Priming	Yes
Max Solids Size	100mm
Max Temperature	110ºC
Viscosity	0-200+ cSt
