All-In-One Flexible Impeller Pump
Max. Flow:
43.8m³/hr
Max. Head:
18m
Max. Temp:
100°C
Material:
Metal

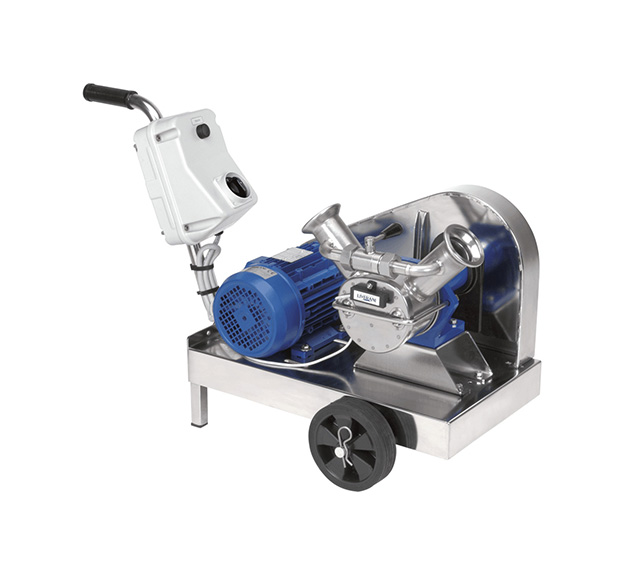

V-Belt Drive Flexible Impeller Pump
Our V-Belt Drive Flexible Impeller Pump is a Self Priming Flexible Impeller Pump that features a belt-driven design. This design effectively separates the motor from the pump head to prevent overload, especially when dealing with challenging fluids. This Flexible Impeller Pump easily handles viscous fluids, and a number of customisation options are available, including baseplate or trolley mounting, control panel inclusion and dry run protection. Additionally, this pump is available in various voltages and speeds, catering to diverse application requirements.
Typical applications for our V-Belt Drive Flexible Impeller Pump:
- Delicate and shear-sensitive fluids
- Viscous fluids with solids in suspension
- Hygienic applications
- Oenological
- Food processing
- Chemicals
- Cosmetics
- Pharmaceuticals
Features & Benefits
- Belt-driven design separates the motor from the pump head, ensuring efficient power transmission and reliable operation
- Belt slips when handling highly viscous or solids-laden fluids, protecting the motor from overloading and extending its longevity
- Available in baseplate or trolley-mounted options for adaptability in various setups
- Optional control panel includes on/off/reversing switch, simplifying pump operation and enhancing user convenience
- Pump head can be equipped with Dry Run protection
- Optional Manual or Spring Loaded By-Passes allow for smooth fluid handling and adjustments
Specifications
| Materials | Stainless Steel AISI 316L |
| Max Capacity | 43.8m³/hr |
| Max Pressure | 24m |
| Self Priming | Yes |
| Max Solids Size | Up to 25mm |
| Max Temperature | 100ºC |
| Viscosity | 50,000 cPs |
